Technical Services


Established A Automation Development Team
We can well develop and design specific machinery

To support high precision control process and automation during kinds of assembly line, Min Aik established a automation development team since 1990. Recent years, our capability not only can fulfill self demand, but also start to become a automation machine/fixture supplier in the world. To solve different automation issue and help customers to design and fabrication, our team can be part of customers' consultant at initial stage. Our service includes PC-based and PLC-based automation facility. Integrated with mutual knowledge in AOI, robot, place-and-pick, mechanism, program and controller, we can well develop and design specific machinery to satisfy any requirement of customers. For more detail, please visit to http://automation.minaik.com.tw

Our automation capability includes
  • Fixture design and fabrication
  • Semi-auto machinery design and fabrication
  • Fully-auto machinery design and fabrication
  • PC-based & PLC-based controller
  • AOI interface design
  • Machinery programming
  • En-coding & De-coding capability
  • Signal linkage and transmission

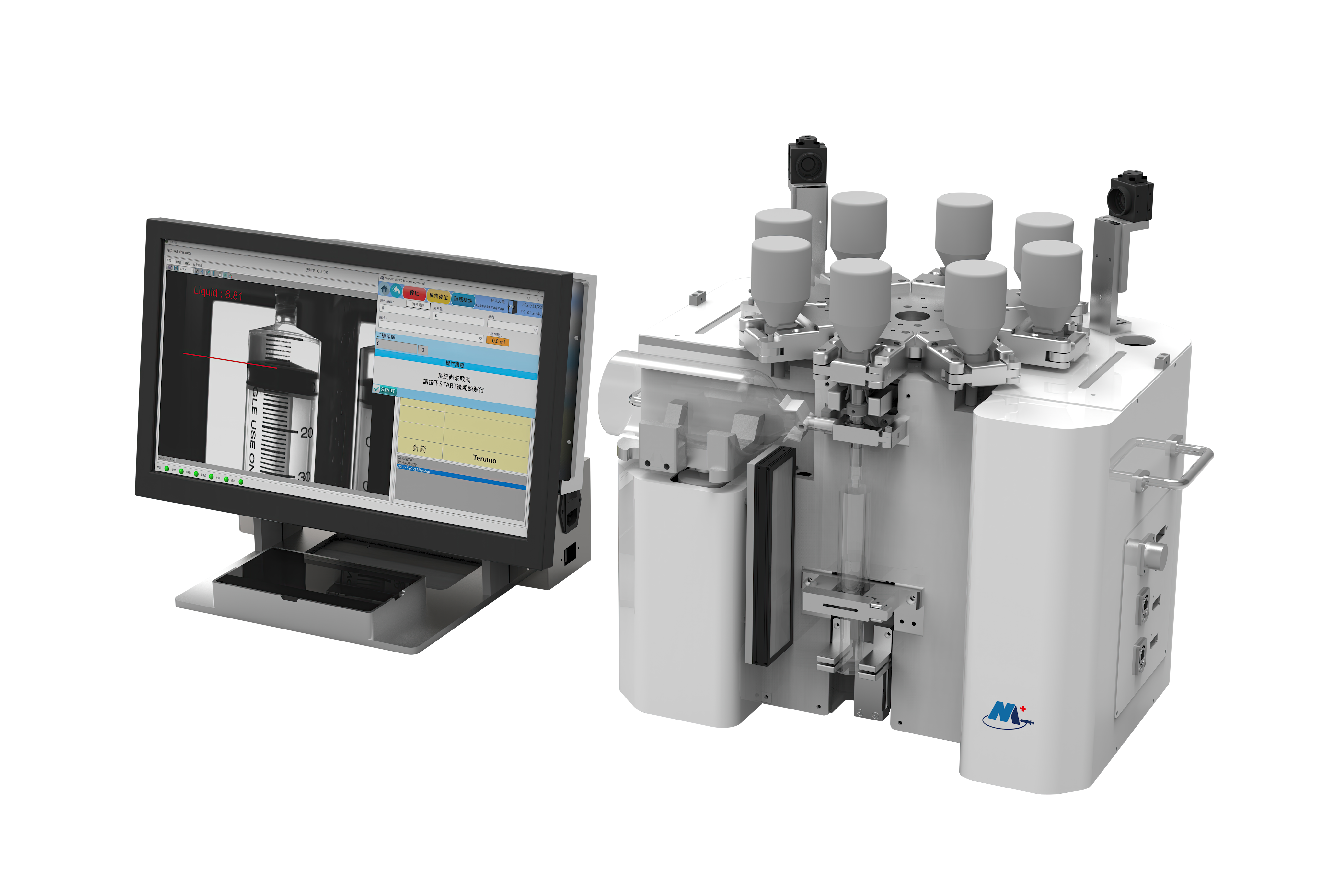

Quick Check Machine

Specification
Type QCM8080
Camera 12M CMOS
Display 10.4 inch LCD display
Lens Double telecnttric lens
FOV 80x80 mm
Measurement accuaacy +-0.005 mm
Repeatability +-0.001 mm
Lighting system Diffusion annular light(standard configuration)
Working environment temperature +10~35ºC
Working environment
humidity
20~80%RH
Power supply 100~240 VAC 50/60 Hz
Overall dimension W430xD560xH980 mm
